Guizhou Huoying Technology Co., Ltd.

Our product portfolio covers a full range of semiconductor wafers and optical substrates, including silicon wafers, SiC substrates & wafers, sapphire substrates, GaN, GaAs, InP, germanium wafers, ZnSe, YAG crystal, BF33 optical glass wafers and other specialty optical window materials.

Learn More

Get Free Quote

100+

Project
Complete

About Us

Guizhou Huoying Technology Co., Ltd.

Guizhou Huoying Technology Co., Ltd. is a professional supplier of semiconductor and optical crystal materials. Our main products include monocrystalline silicon wafers, sapphire substrates, SiC, GaN, GaAs, InP substrates, YAG crystals, high-purity germanium wafers and optical window sheets.

We serve universities, research institutes, semiconductor manufacturers and optical enterprises. We provide customized cutting, polishing and strict flatness control (TTV, Bow & Warp) services for wafers of various crystal orientations and sizes. With stable supply chain and reliable quality control, we have built long-term cooperative relationships with customers from Asia, Europe and North America.

微信：13262739223

Product Categories
Filter by: Silicon, Sapphire, GaAs, SiC, YAG、YSZ、AIN、InP、GeWafer、Others

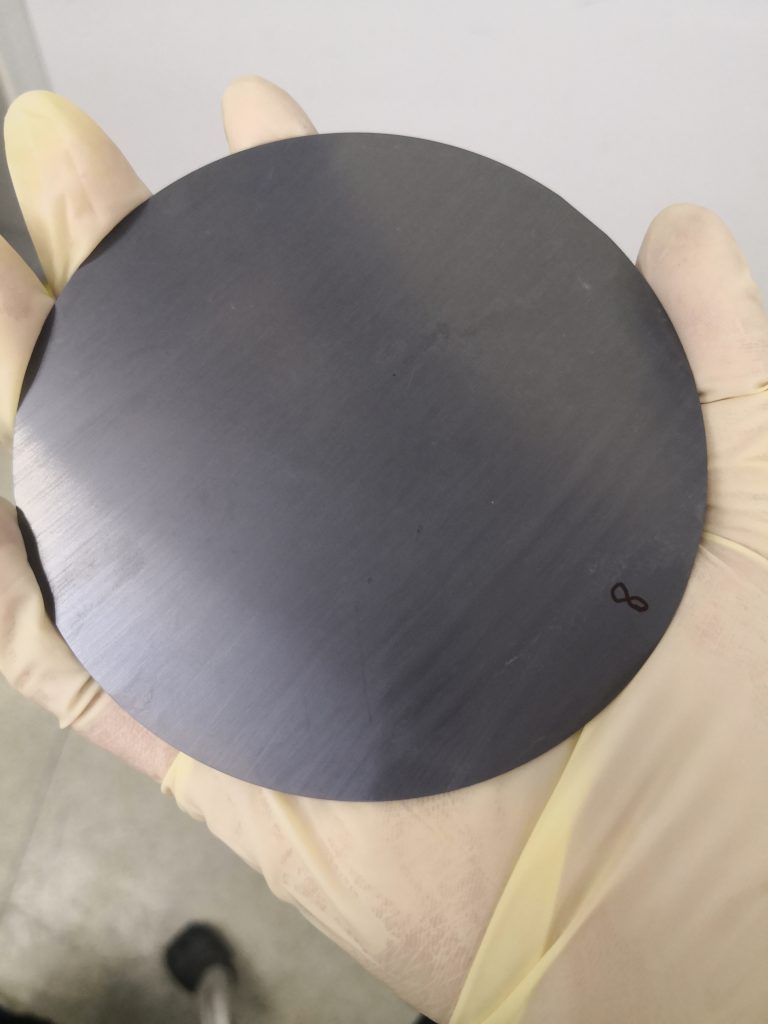

Silicon Wafers

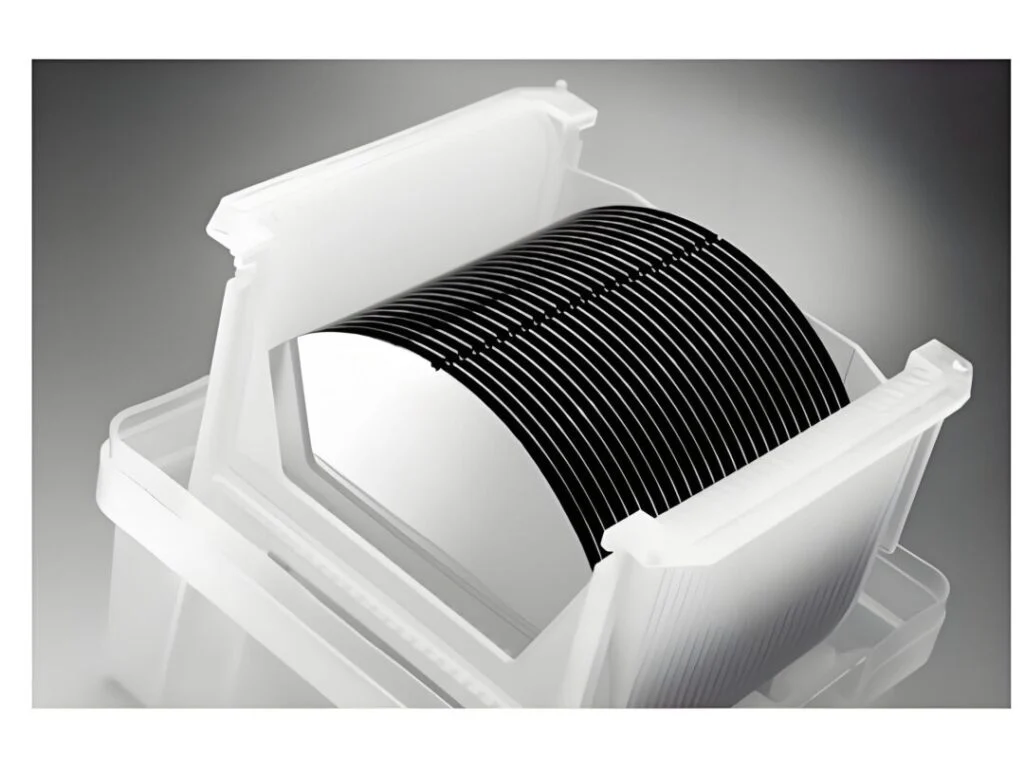

“High-purity Float Zone (FZ) and Czochralski (CZ) silicon wafers, available in 2-12 inch sizes with precise resistivity control.”

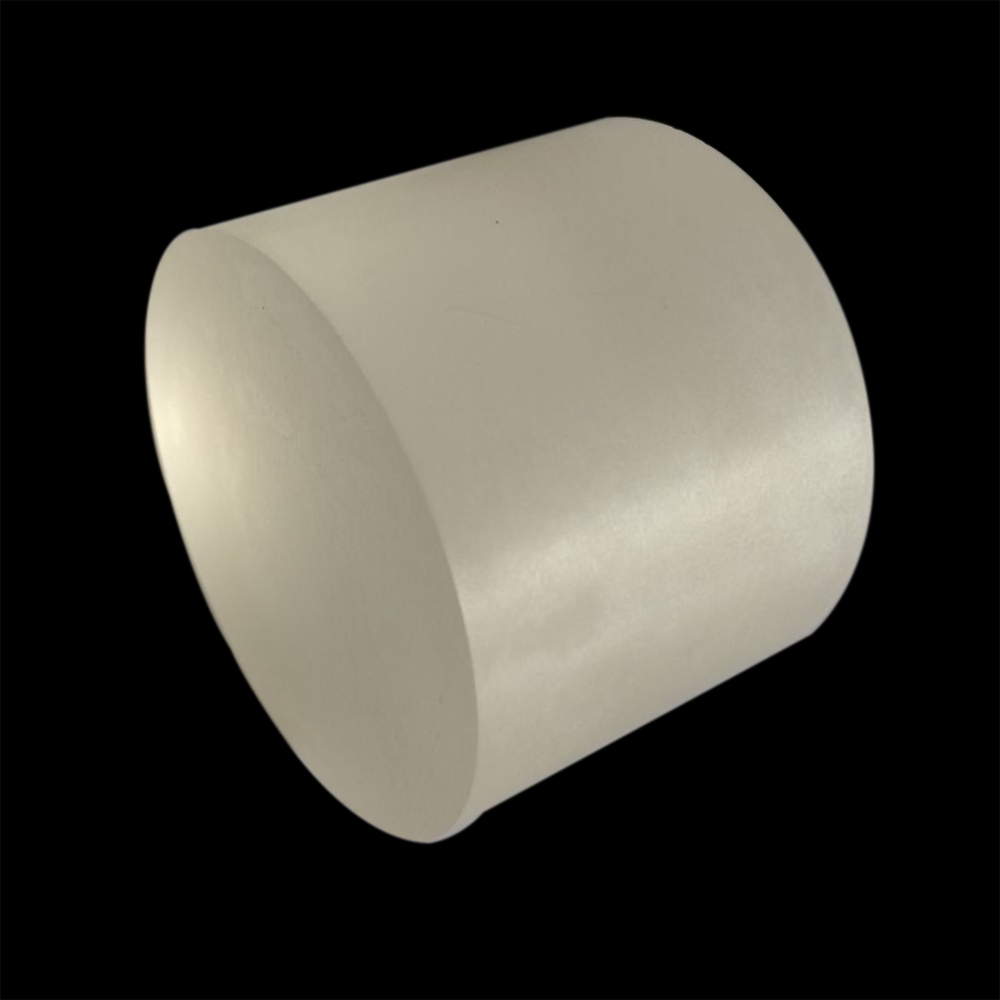

Sapphire Substrates

High-quality C-plane and off-cut sapphire substrates for LED chips, power electronics, and optical windows.

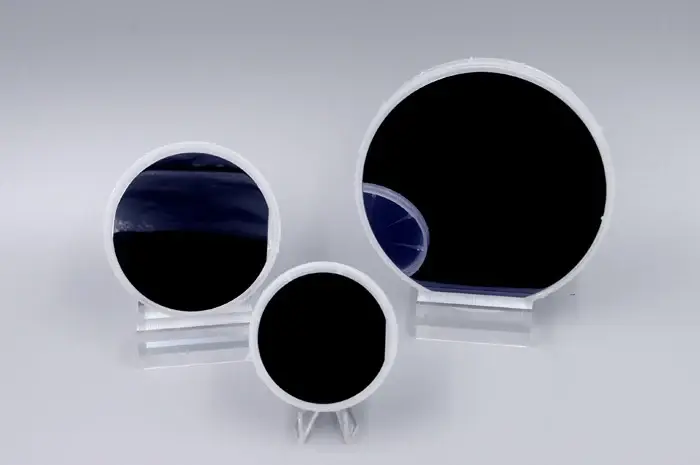

Window Wafers

Custom optical windows with diverse substrate options and coating services. Flexible for small quantity orders and fast delivery. High precision polished windows for industrial, laser and optical measurement applications.

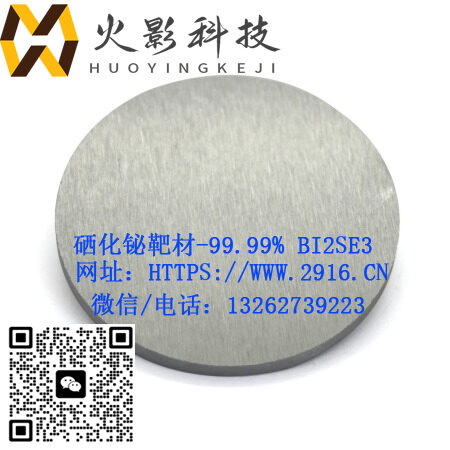

Sputtering Targets

Broad material coverage of metal, alloy & ceramic targets. Plenty of standard items kept in stock for fast delivery. Custom specifications are supported for semiconductor thin film PVD applications.

YAG/YSZ Wafers

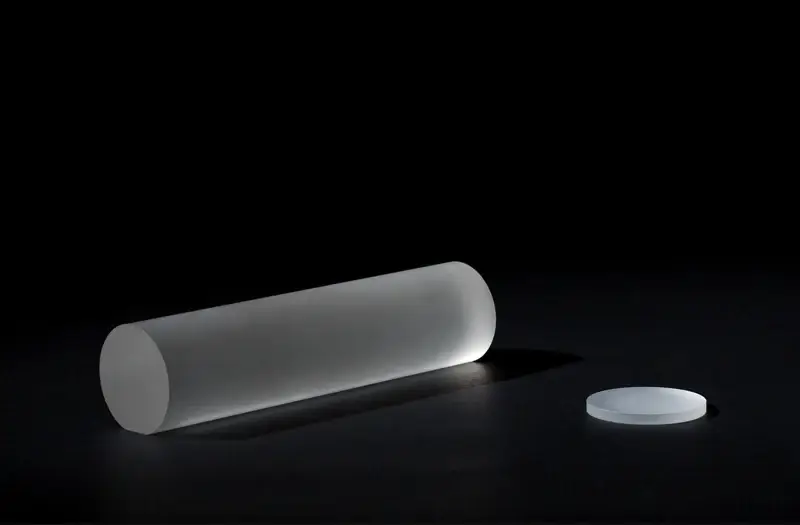

Precision YAG wafers, YSZ wafers and YAG crystal rods. Custom fabrication supported, fast delivery for small batches. Ideal for laser, semiconductor substrate and high-temperature optical applications.

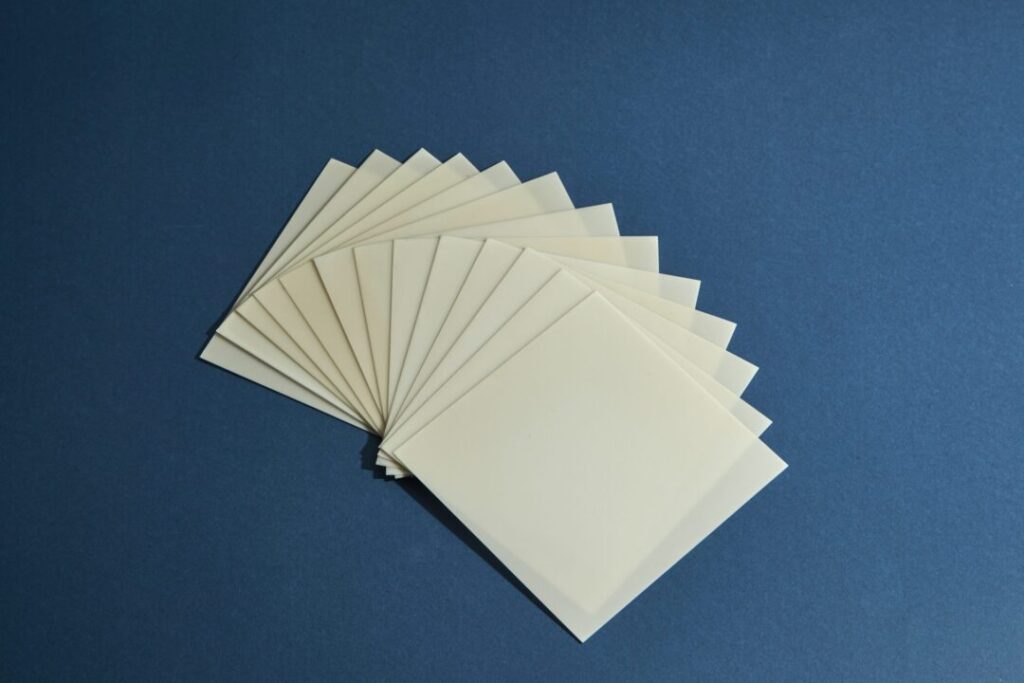

Ceramic Substrates

Precision AlN ceramic substrates, AlN single crystals and alumina substrates. Custom processing available with quick delivery for your R&D and pilot projects. Suitable for high-power and semiconductor packaging applications.
